Static Pressure & Differential Pressure Switch/Transmitter

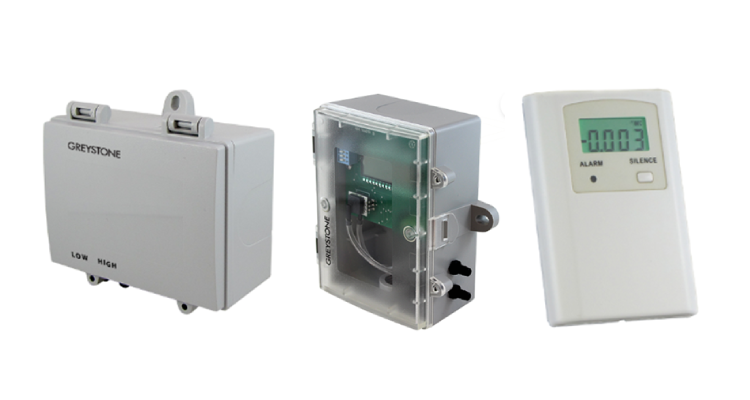

1. Air Differential Pressure Transmitter

Features

Ranges ± 1″ W.C. to ± 0.125 “wc W.C. (± 250 Pa to ± 30 Pa) for low range & upto 2000Pa range.
Field selectable outputs
Precision silicon sensor
24 Vac/dc power supply standard
Functional and attractive enclosure
LCD display & alarm output
Optional BACnet Communications

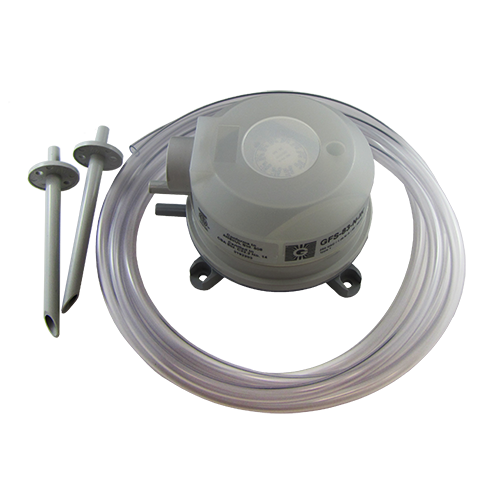

2. Air Differential Pressure Switch

Features

Range: 20-2500Pa
Contains a diaphragm, a calibration knob and a snap-acting SPDT switch.
2 connections accept 6.35mm(0.25″)OD tubing.
Enclosure cover guard against accidental contact.
Will accept a 12.7 mm (0.5″) conduit connection or M20 connection.

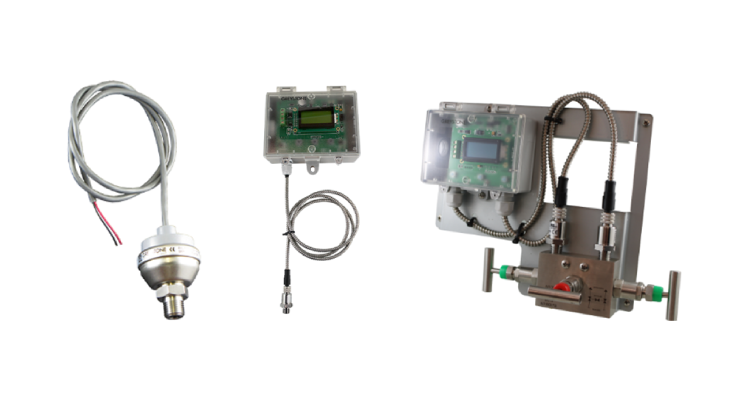

3. Liquid Gauge/Differential Pressure Transmitter

Features

Available Pressure Range: 0-3500Kpa (for gauge Pressure), 0.5 -35bar(Diff. Pressure)
FT-6 or Armoured cable available in different lengths
Four, switch selectable ranges per model
LCD display option available
Jumper selectable outputs: 4-20 mA, 0-5 Vdc or 0-10 Vdc
Hinged Polycarbonate weatherproof enclosure
With Manifold option available for DP transmitter

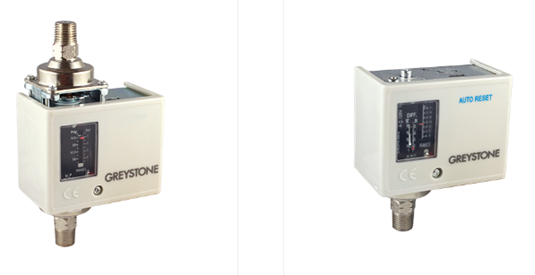

4. Liquid Gauge/Differential Pressure switch

Features

Available Pressure Range: -0.5 to 6bar (for gauge Pressure), 0.5 -3.5bar(Diff. Pressure)
High rated SPDT contacts
Adjustable setpoint
Adjustable Differential for DP switch
Direct switching of 240 Vac loads
Full mechanical switching
